AMR- Log Elevator

5 metre Telescopic Log Elevator
Description:

Independant conveyor, ideal to transport wood or other materials.

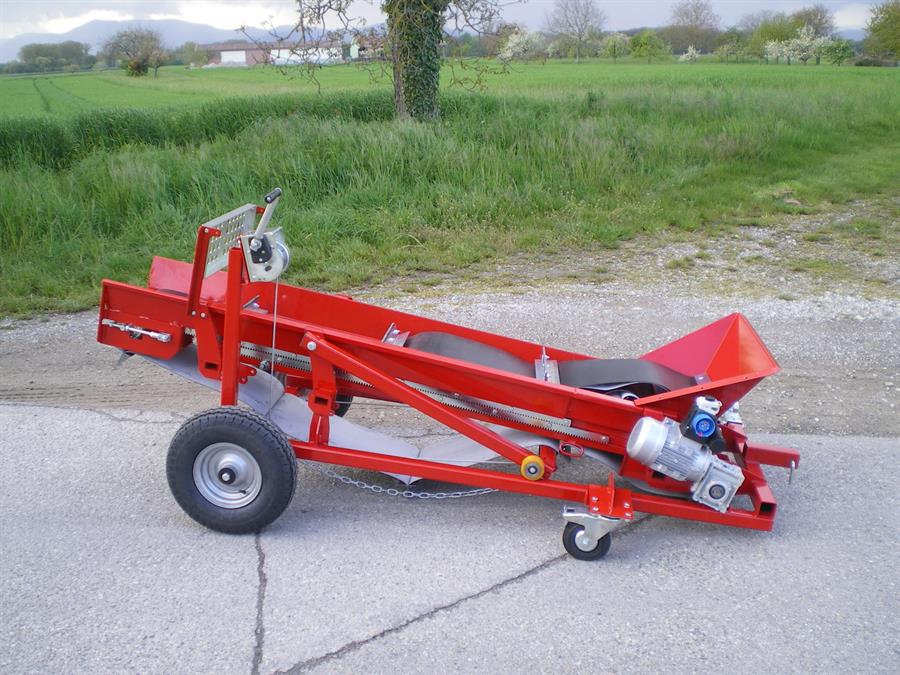

  • Horizontal folding of the conveyor for a safe transport
  • Draw bar for the trailer coupling
  • Telescopic conveyor with individual sections (you can change them separately in case of a defect) and with safety grid
  • Manual winch for unfolding and the inclination of the conveyor.
  • Four wheels: Two of them are pivotable
  • Wheels are mounted on axles
Technical Specifications:
  • Power supply : Electric single-phased or 3-phased / Hydraulic or Petrol Engine
  • Dimensions of the conveyor : Width : 35 cm / length of conveyor : 5 meters
  • Height of loading / unloading : 60 cm / Min: 1.7 m - Max: 3 m
  • Dimensions of the funnel : 70 x 40 cm
  • Dimensions of transport : L 2.6 x W 1.2 x h 1.0 m
  • Weight : 290 kg
