Unfortunately due to current market and supply issues this product is temporarily unavailable, we continue to supply parts and service these machines.

Lucas Mill- 1030 - 10" Cut Sawmill

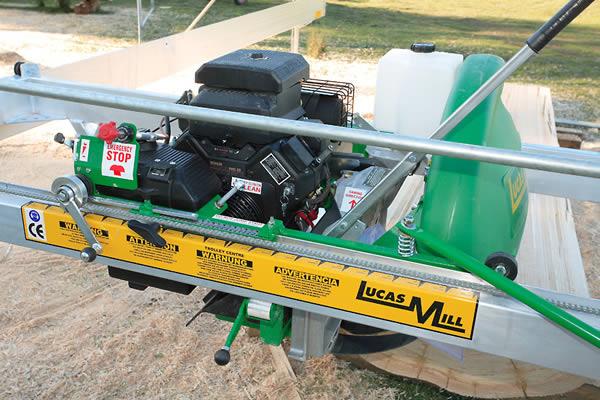

Complete 10" 30hp Lucas 1030 Portable Sawmill
Description:

Bigger trees are no problem with this 10" Lucas Mill. Boasting a massive 10" (254mm) cutting capacity, this machine will have no trouble tackling the most challenging timber projects. Aimed at large scale portable sawmilling applications, this machine is designed to handle cutting large dimension lumber. If your projects primarily involve cutting small dimension lumber, we recommend that you consider the other models in the Lucas range to minimize timber loss to kerf. A full range of optional attachments are also available to suit this model. So stop changing bandsaw blades and step up to a Lucas Portable Sawmill! Call and ask for a free video and brochure today.

Options:-

2 metre extension beam extension kit

6", 8" or 10" slabber attachment

Dedicated slabber (complete head unit) 16hp Briggs & Stratton man start

Bevel attachment for weatherboarding

Log Lift for lifting timber

Metal Detector Kit approx 14" depth

Watch the case study video>>

Technical Specifications:
Engine Electric start, EFI V-twin petrol 30hp
Transmission

5" centrifugal clutch, 3 SPA 1030 belts, 40mm shaft

1 piece hub/shaft assembly

Sawblades 5 tooth TCT 3.55 plate , 6.1 kerf
Cut Length Up to 6.1m in standard form
Cut Sizes

Up to 254mm x 254mm (10" x 10")

Double cut up to 254mm x 508mm (10" x 20")

Side Winder Standard
Weights
Carriage 176kg
Tracks 61kg
End-frames 81kg
Shipping Weight 430kg
Shipping sizes

Box: 1.03m x 0.75m x 2.85m

Tracks: 0.3m x 0.2m x 6.1m

Slabber Optional



Video:
Brochure Download:
