Uniforest- Log Deck

Maximise your firewood production with a Log Deck or Log lifting table

3 Chain Log Deck 4 metre log with singulator and anti-roll-back features

2 Chain Log Deck 4 metre log with singulator and anti-roll-back features

Description:

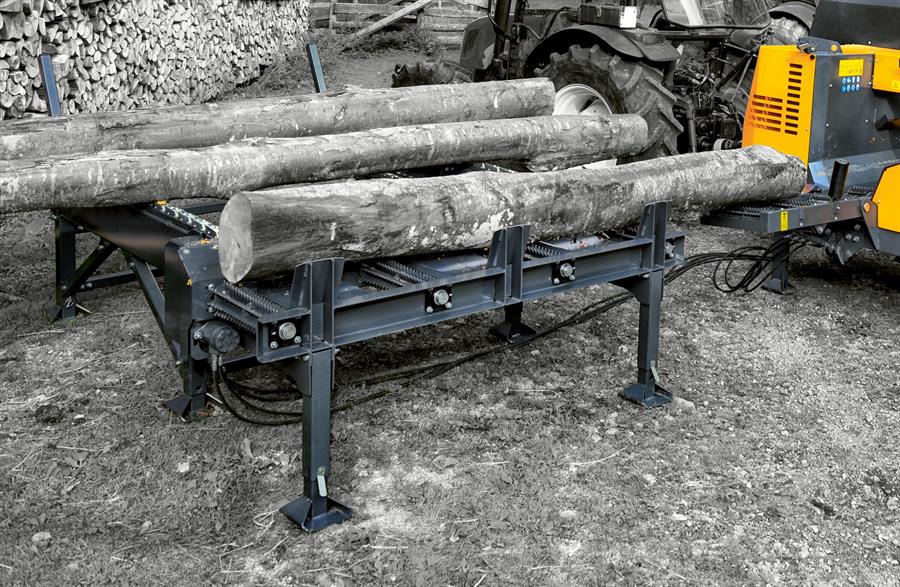

Log decks are available in two or four meter-long versions. Logs are loaded with a chain and spiked rollers – rolling instead of sliding logs.

Uniforest Log Decks have an integrated singulator and anti rollback feature which ensure easy operation and efficient loading of logs in to your processor.

Uniforest processors have adjustable legs that enable the height to be changed making them suitable for use with other processor manufacturers.

Technical Specifications:

	DM2000/2	DM4000/2	DM4000/3
Load capacity	6	6	6
Max. working pressure	19	19	19
No. of chains	2	2	3
Length	2000	4000	4000
Width between chains	1600	1600	800/1600
Adjustable table height	680-930	680-930	680-930
Weight	500	750	900
Adjustable length of log deck
Adjustable height or log deck
Standard, Optional

Key Features:

	Log Deck DM4000/2 2 drive chains 4m long

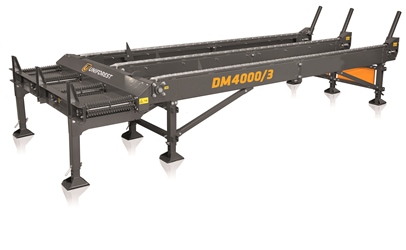

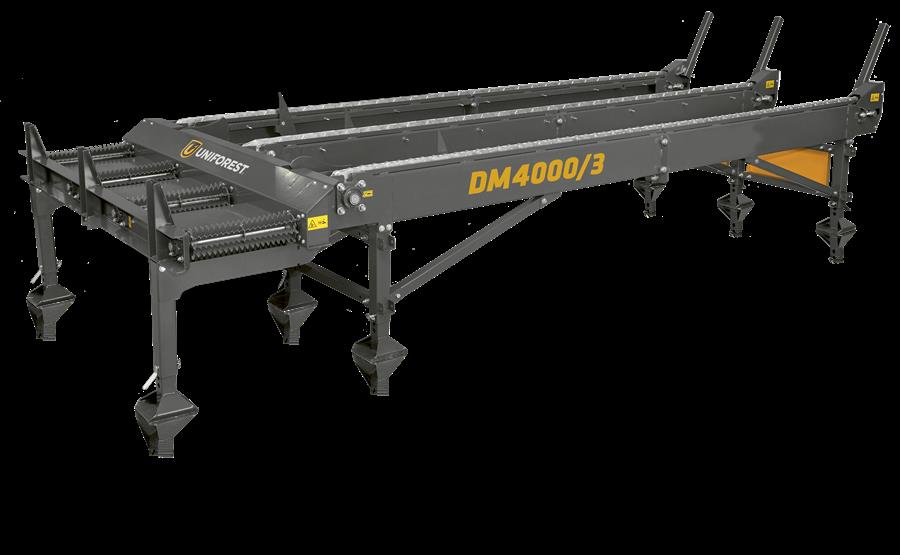

	Log Deck DM4000/3 3 drive chains 4m long
	Log traverse casssette 3 drive rollers

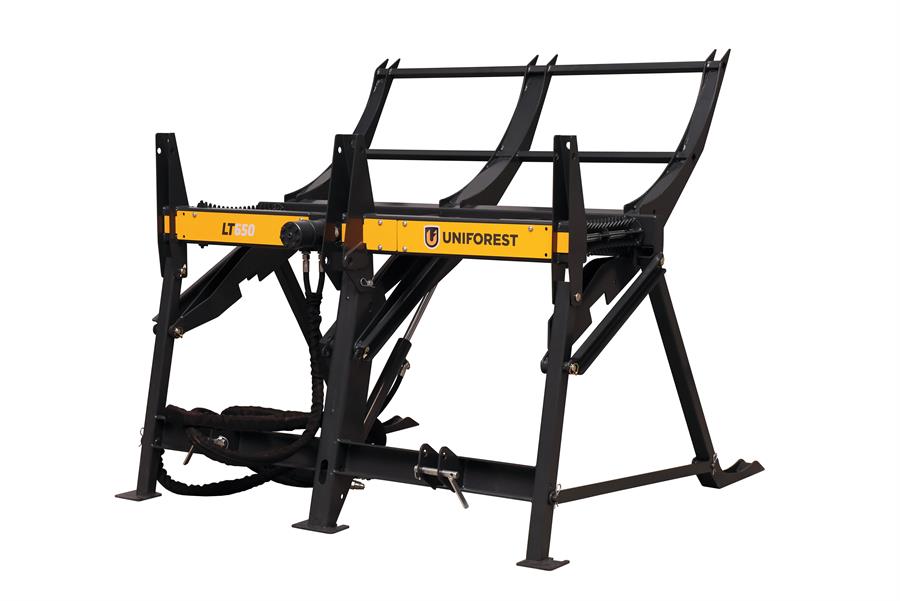

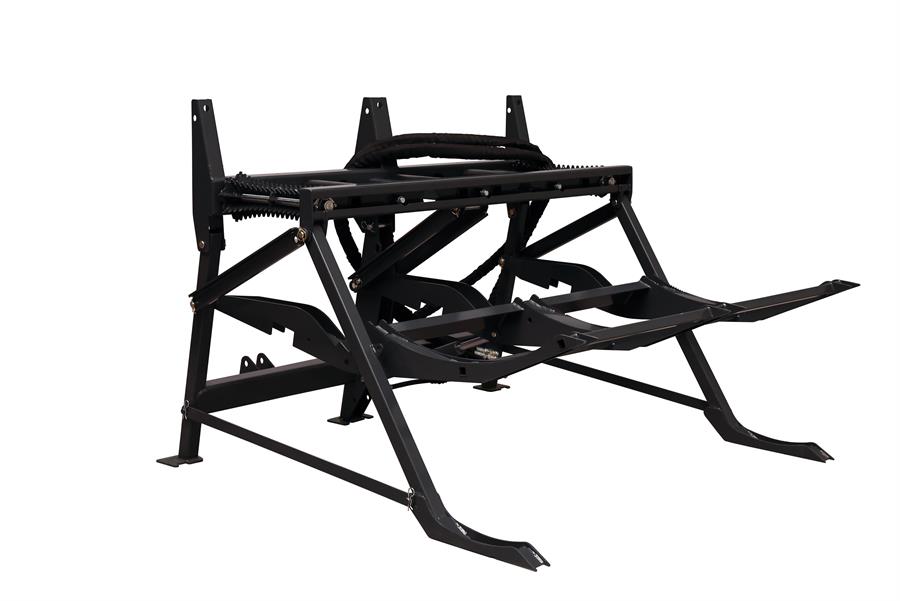

	Log Lifting Table with 3 drive rollers
