Uniforest- Series EH Winches

Forestry Winches STANDARD - SERIES EH

Description:

The hydraulic forestry winches of the EH series have a pulling force from 4t to 8t.

Hydraulic forestry winch 50 EH / EHpro with a pulling force of 5,0 t can be with an unwinding device (EHpro) or without (EH).

Hydraulic forestry winch 50 EH / EHpro with a pulling force of 5,0 t makes its easy to use due to unwinding device and functions AUTO STOP and SMART 3in1. Integrated hydraulic equipment ensures log service live of the winch and wire rope. Foldable window guard makes transport easier.

Model 55 EH is without unwinding device.

SMART 3-in-1AUTO STOP function
Unwinding device
Hydraulic equipment with many advantages
Plenty of room on the front side of the butt plate
Foldable window guard

Technical Specifications:

		40EH	50EH	50EHpro	60EH	60EHpro	80EH	80EHpro
Pulling force	kN	40	50	50	60	60	80	80
Wire rope medium speed	m/s	0.6	0.6	0.6	0.6	0.6	0.6	0.6
Drum capacity length/diameter	m/mm	130/9	110/10	100/10	-	-	-	-
		100/10	90/11	90/11	120/11	120/11	120/12	120/12
		85/11	75/12	75/12	100/12	100/12	100/13	100/13
		70/10	70/11	70/11	80/12	80/12	90/13	90/13
Recommended tractor power	kW	22-40	40-55	33-50	40-66	40-66	min. 50	min. 50
Recommended tractor power	HP	30-54	54-75	45-70	55-90	55-90	min. 68	min. 68
PTO shaft revolutions	rpm	540	540	540	540	540	540	540
Standard butt plate length	mm	1500	1600	1600	1600	1600	1800	1800
Depth of winch	mm	480	490	490	650	650	650	650
Height of winch- excluding guard	mm	1315	1480	1480	1640	1640	1650	1650
Height of winch including guard	mm	2000	2300	2300	2300	2300	2300	2300
Weight without wire rope	kg	366	409	395	538	538	580	580
Trailer tow hitch
Lower pulley
Chainsaw holder
Pickaxe holder
Foldable window guard
Unwinding device
Auto stop function
SMART 3in1
Control		Electro-hydraulic	Electro-hydraulic	Electro-hydraulic	Electro-hydraulic	Electro-hydraulic	Electro-hydraulic	Electro-hydraulic
Connection	cat.	I, II	I, II	I, II	II, III	II, III	II, III	II, III
Standard, Optional

Scroll left<>right for more detail

Key Features:

	SMART 3IN1 (1) When pulling logs with a tractor, you may encounter some obstacles on the road (hill, roots etc.). If the tractor is not able to overcome these obstacles, the unwinding function can be switched into the mode without the assistance of the unwinding device and you can continue driving with a taught wire rope between the winch and the load. (2) The unwinding device can be turned on and off without delay (the standard model has a 1.5 sec. delay). (3) The SMART 3in1 function ensures additional tension of the wire rope between the unwinding pulley and drum. This function is only available with the remote controls Teleradio, Terra funk and manual console.
UNWINDING DEVICE AND AUTO STOP To make the wire rope unwinding easier you can choose a winch with an integrated unwinding device. This type of winch also guarantees a constant tension of the wire rope between the unwinding pulley and the drum, thus preventing damage to the drum or pulley and enabling a longer service life. AUTO STOP function (limit switch) automatically stops the function of winding the wire rope on the drum. This function prevents mechanical damages of the unwinding device, entanglement and wire rope damages.
	HYDRAULIC EQUIPMENT Integrated tensioning system, wire rope speed adjusting valve, integrated pressure filter in the block and valve for cylinder opening.
	TRACTOR ATTACHMENT SYSTEM Two different heights of attachment to the tractor with a reliable protection preventing the linkage mounting pins from falling out (support leg attachment).

Uniforest- Series EH Winches

Related Products

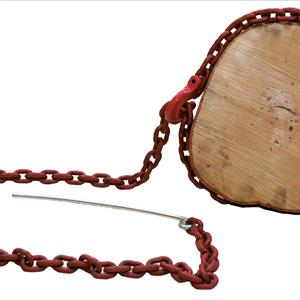

Uniforest - Winch Accessories

Uniforest - Series E Winches

Uniforest - Series H Winches

Uniforest - Series M Winch

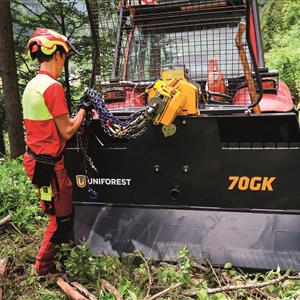

Uniforest - Series GK Winch

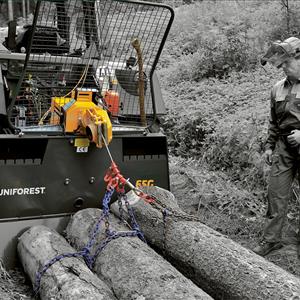

Uniforest - Series G Winch
